2022 Lion’s Castle (Lwi Zamek) in Gdansk

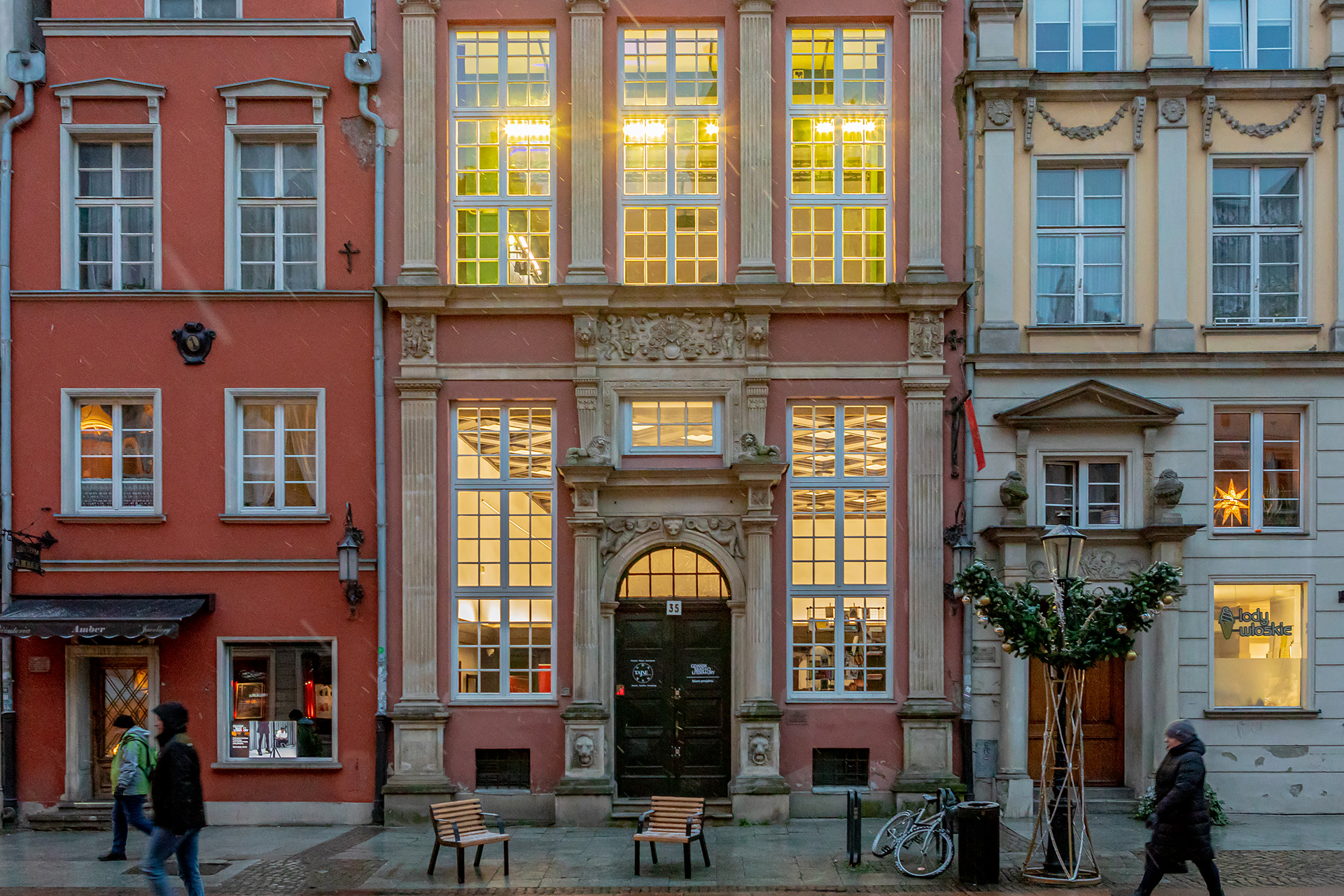

The historic Lion’s Castle tenement house (Lwi Zamek), home of the Gdansk City Gallery, is a unique space where history meets modern technology. As part of the modernisation of its multipurpose performance hall, professional technical facilities were created that allow cultural, educational and business events to be held at a high level.

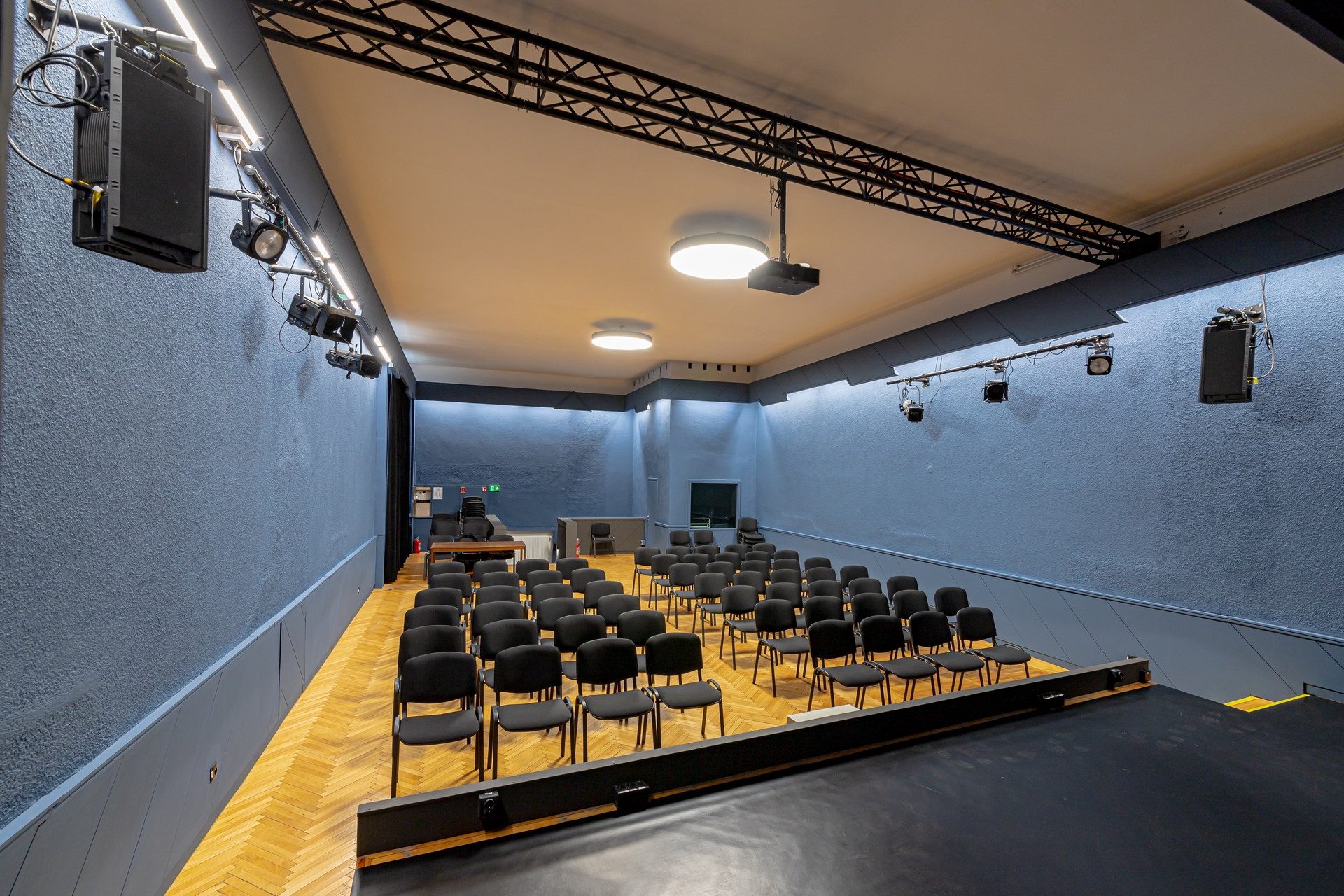

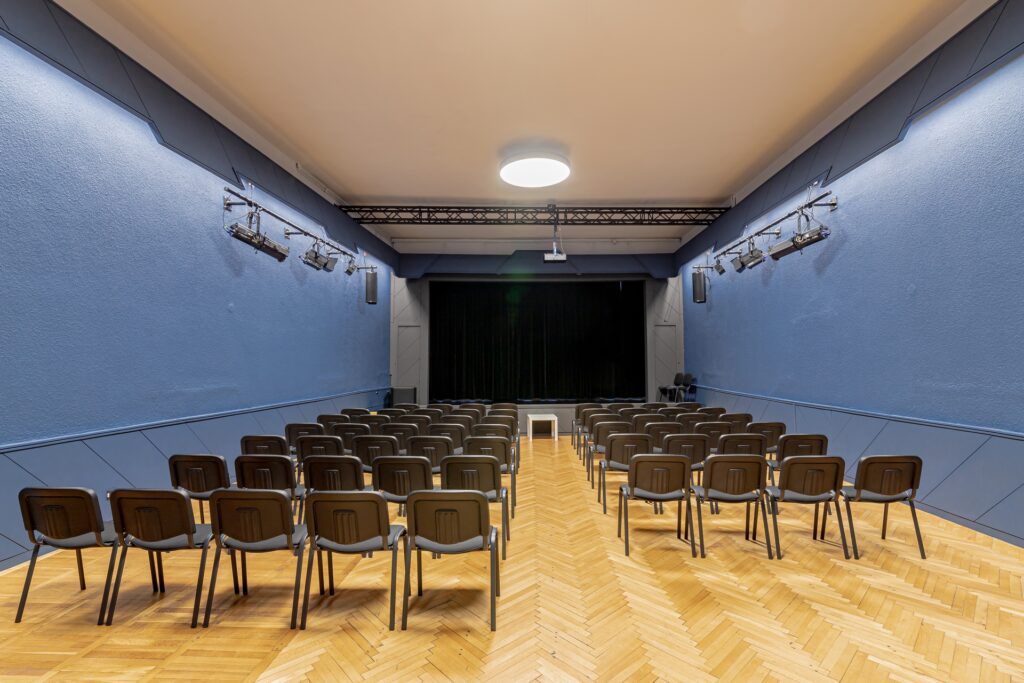

Designed for around 120 participants, the hall serves as a flexible space for conferences, seminars, lectures, multimedia presentations, author meetings, exhibition openings and intimate theatre performances. To meet such a wide range of uses, we carried out a comprehensive modernisation of the stage technology, covering stage machinery, lighting, the electroacoustic system, multimedia and the power and control infrastructure.

2022 Lwi Zamek w Gdańsku

Designed for around 120 participants the hall serves as a flexible space for conferences, seminars, lectures, multimedia presentations, author meetings, exhibition openings and intimate theatre performances. To meet such a wide range of uses, we carried out a comprehensive modernisation of the stage technology, covering stage machinery, lighting, the electroacoustic system, multimedia and the power and control infrastructure.

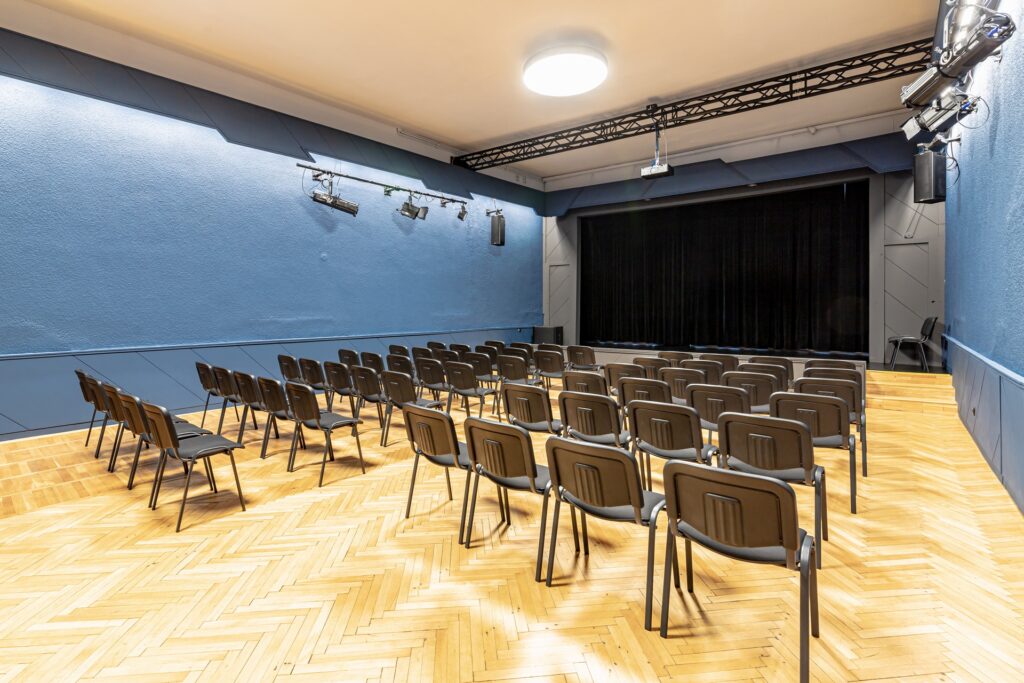

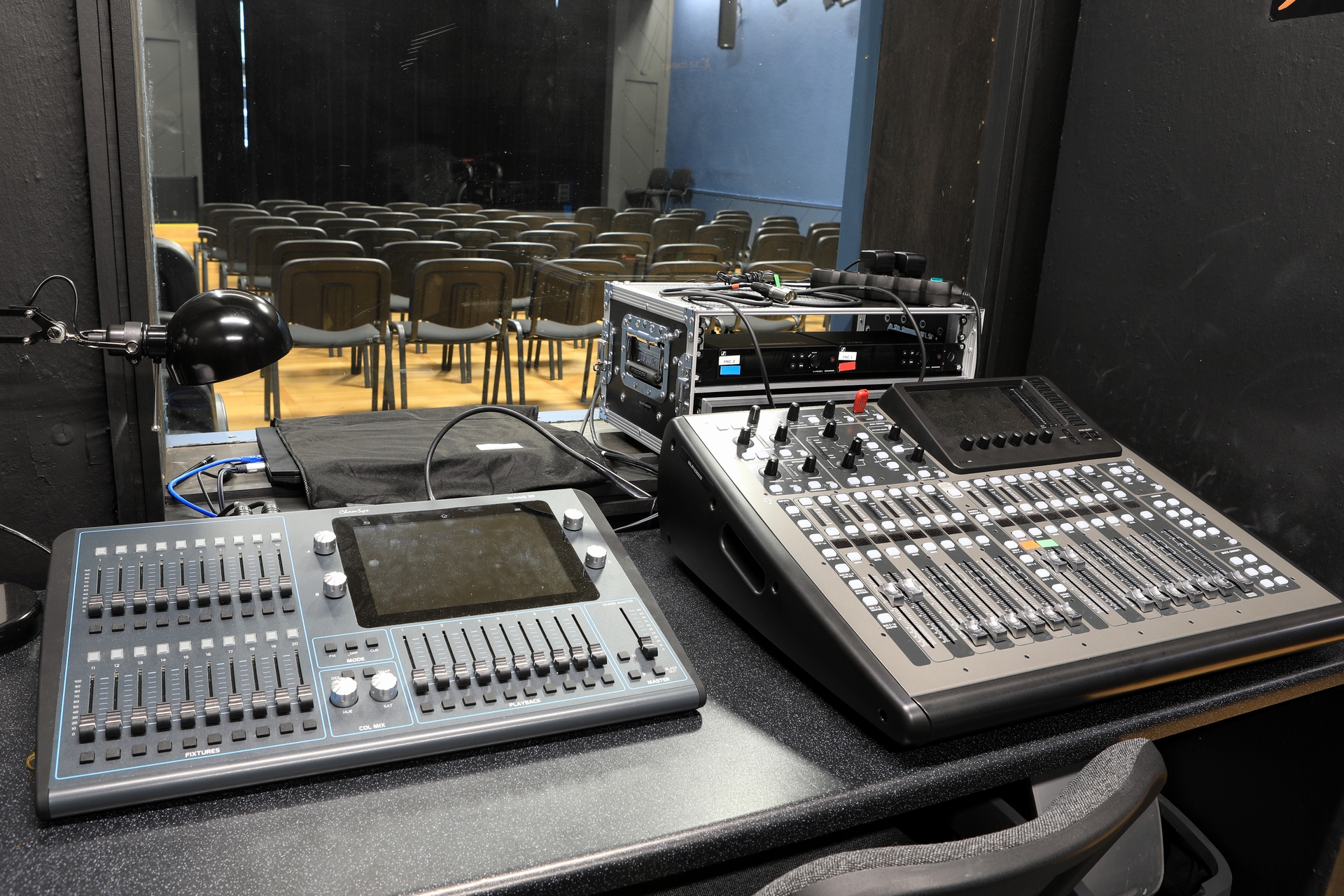

The scope of work included the installation of stage machinery elements, including rails, aluminium trusses and a drapery system that allows the hall to be fully blacked out during screenings and stage events. A modern electroacoustic system was also installed, equipped with a 40-channel digital mixer, a stagebox, wireless microphone sets and a full range of peripheral equipment, ensuring high-quality sound for all kinds of events.

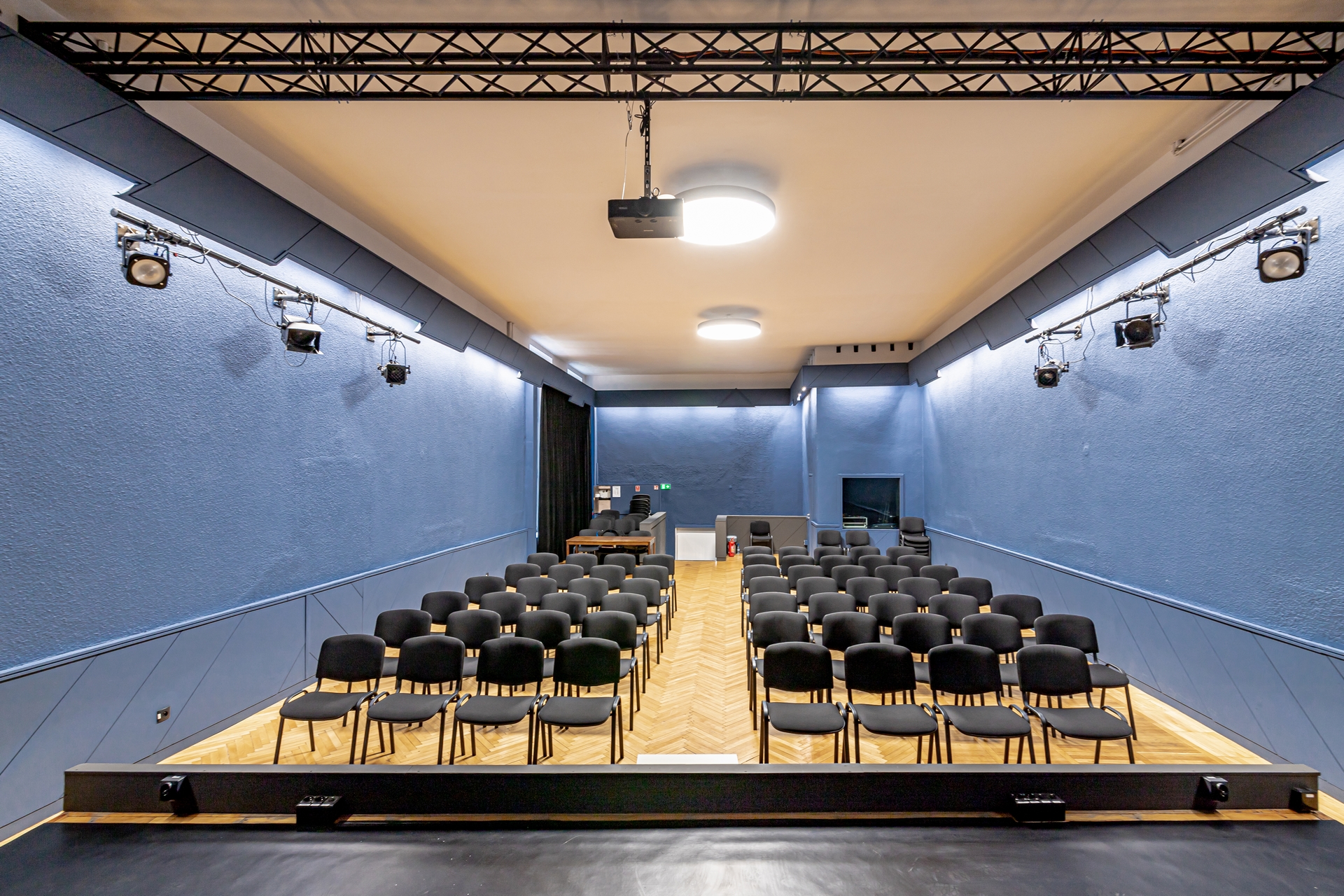

Another important element of the project was a modern multimedia system for the hall. An electrically operated roll-down projection screen was installed with a diagonal of 204 inches, together with a laser projector with a brightness of 6000 ANSI lumens and WUXGA resolution, a video distribution system and a multimedia computer with all the equipment needed for presentations. The project was completed by modernising the power and control installation dedicated to the stage technology.

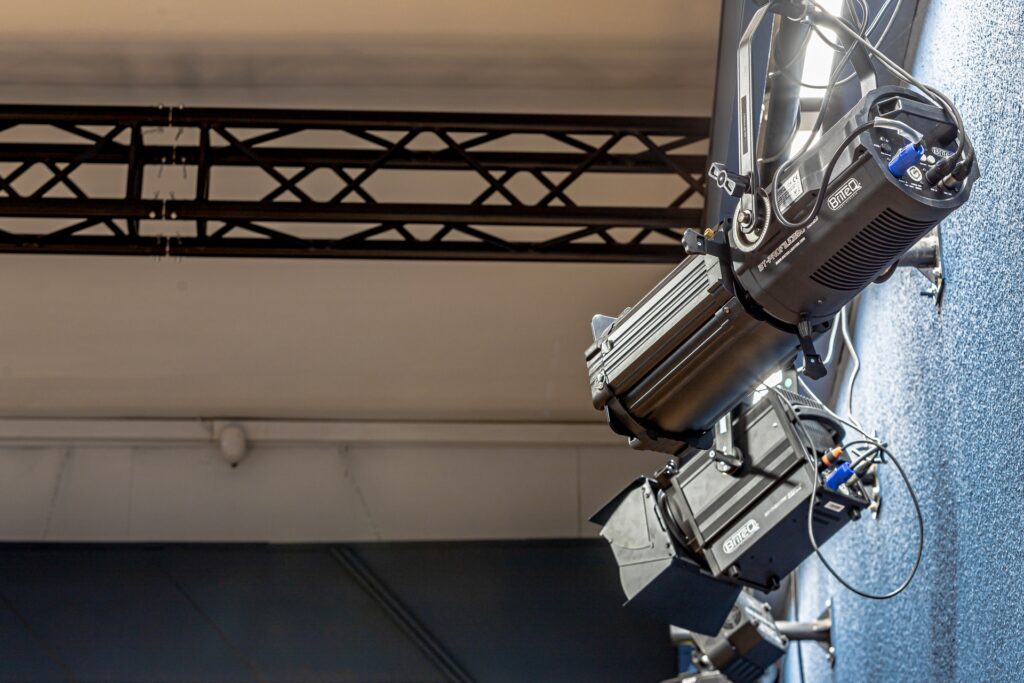

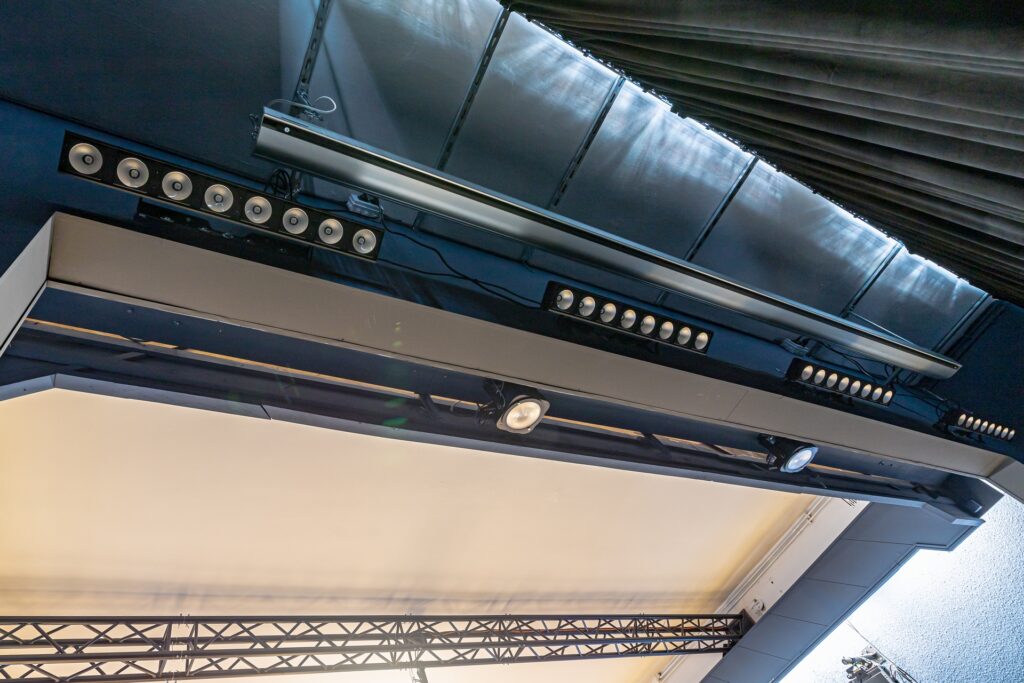

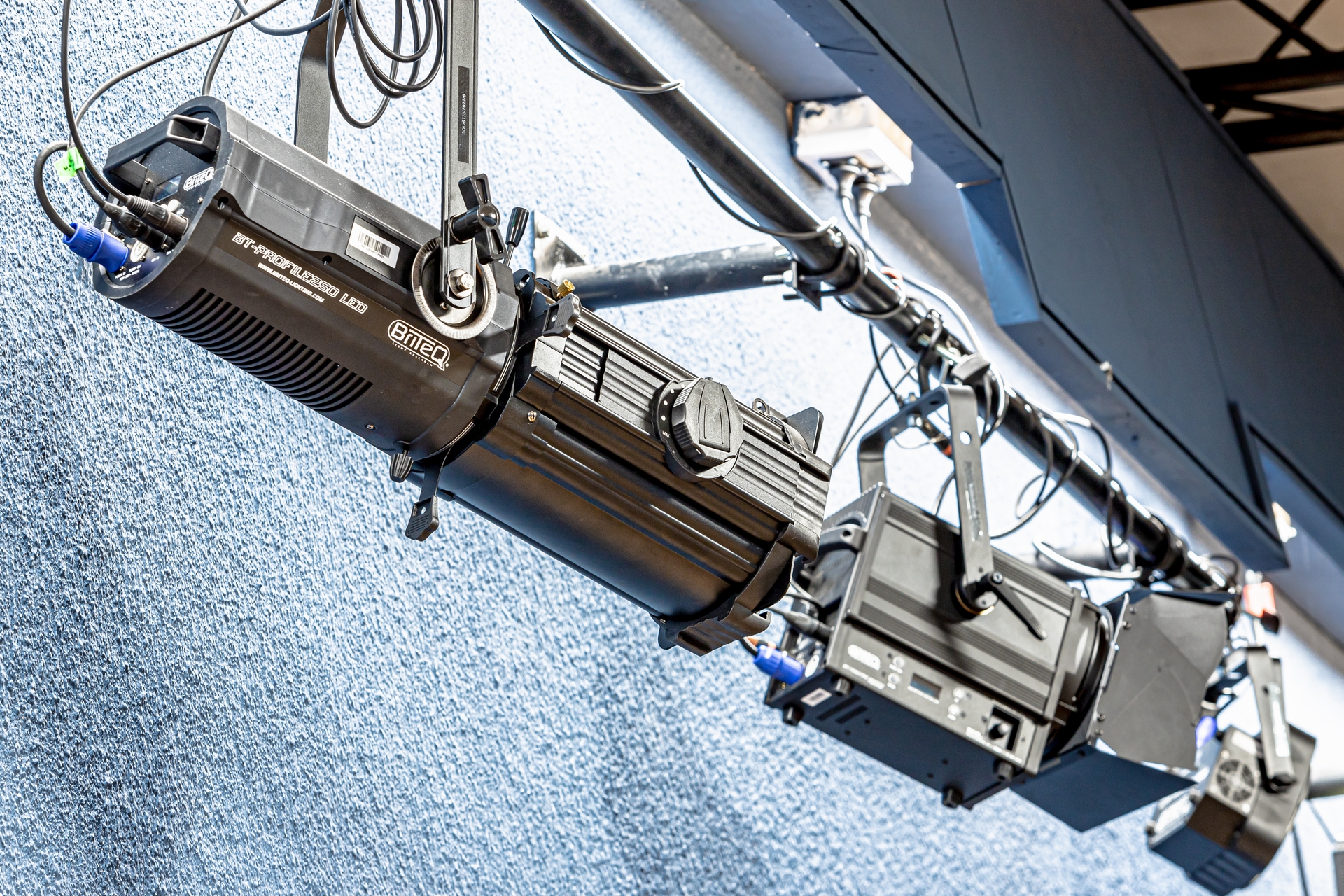

The lighting system is based on fixtures from Briteq, which combine high build quality, energy efficiency and quiet operation. The installation includes Fresnel spotlights Briteq BT-Theatre 200TW with stepless colour temperature adjustment, profile spotlights Briteq BT-Profile 250 with a CRI of 97, floodlights Briteq BT-COB Slim 100 for general area lighting, and LED battens Briteq PowerPixel8 RGB, which allow dynamic lighting effects and striking stage backlighting.

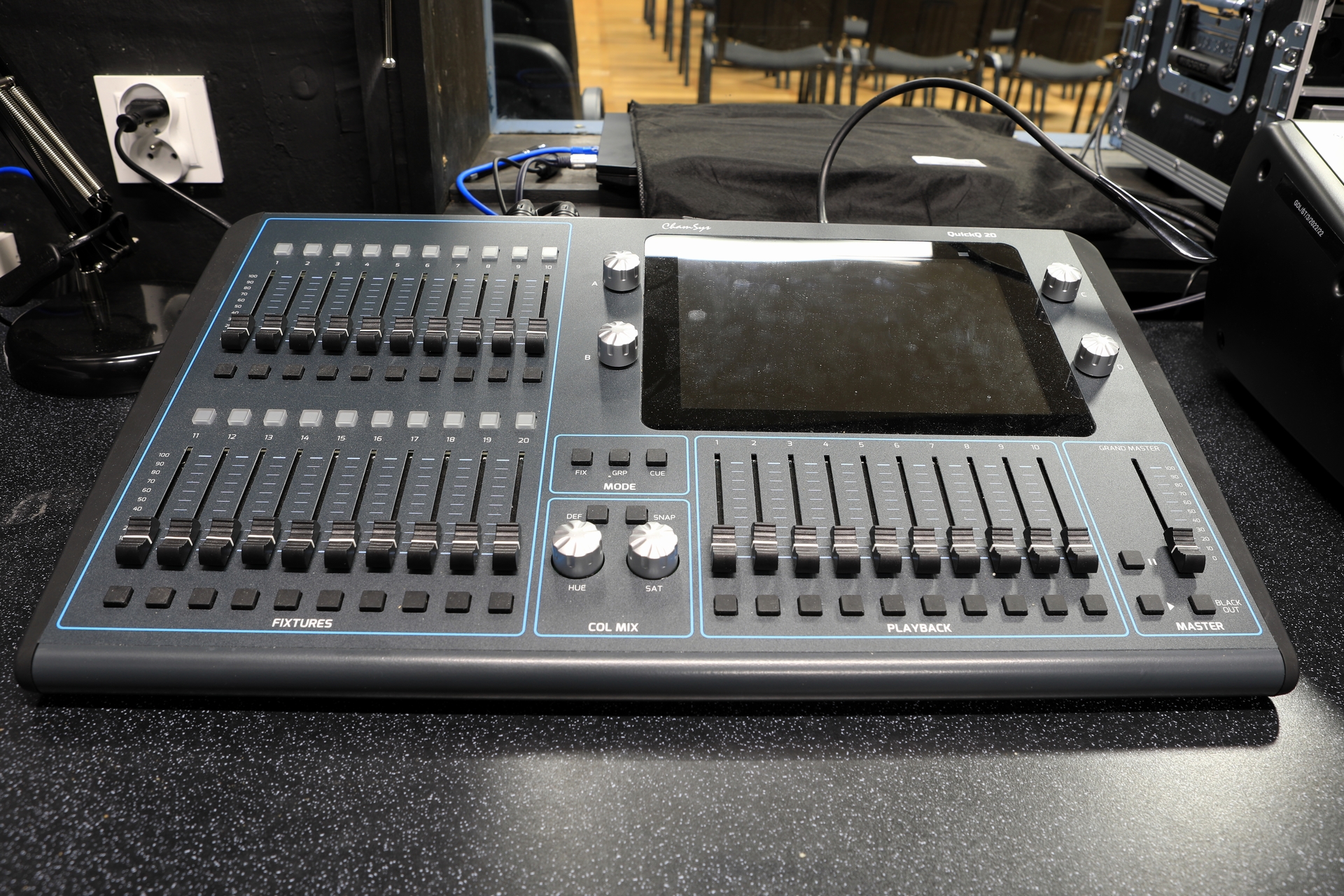

The entire system is controlled by the ChamSys QuickQ 20, a console whose intuitive interface, touch screen and DMX support ensure fast, convenient operation. Signal distribution is handled by the Briteq DMS-26, which combines the functions of a DMX splitter, merger and booster, guaranteeing stable and reliable communication between all elements of the installation.

The modernisation has created a modern, multipurpose space that perfectly meets the needs of a contemporary cultural institution. Thanks to these solutions, the hall at Lwi Zamek can successfully host artistic events as well as conferences and multimedia presentations, offering organisers professional technical facilities and participants a comfortable, high-quality experience at every event.
